Live radio extension box for public transport infotainment systems on rail, bus, tram …



  • Powered by free over-the-air broadcast
  • Compliant to DAB+ standard ETSI EN 300 401

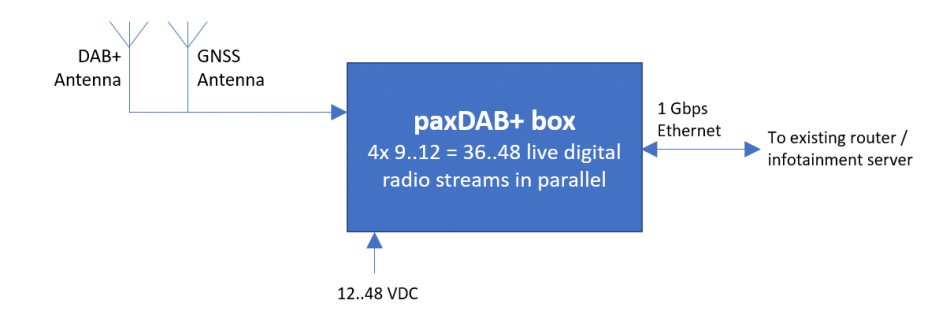

  • Receives/decodes up to four DAB+ multiplexes  simultaneously – all channels
  • Multicasts via existing onboard infotainment server to passengers’ devices
  • Self-learning, AI-powered tuning handovers
  • Supports “hybrid radio” (automatic switch-over DAB+/4G) when 4G (or other internet access) is available
  • Ready for HRadio, the future of interactive radio https://www.hradio.eu/
  • Versions available for rail, bus, tram, rapid transit
  • Functionality tested and validated for rail in 2019

Power consumption 10W

Operating temperature -40 °C bis +70 °C, EN 50155 class OT4/ST0

Connector             M12

Mounting Bracket

Certifications CE according to 2014/53/EU (RED), 2011/65/EU (RoHS),

Railway according to EN 50155 class OT4/ST0,

EN 45545 Domain Railway

Passive, convective cooling, hermetically sealed
